Description

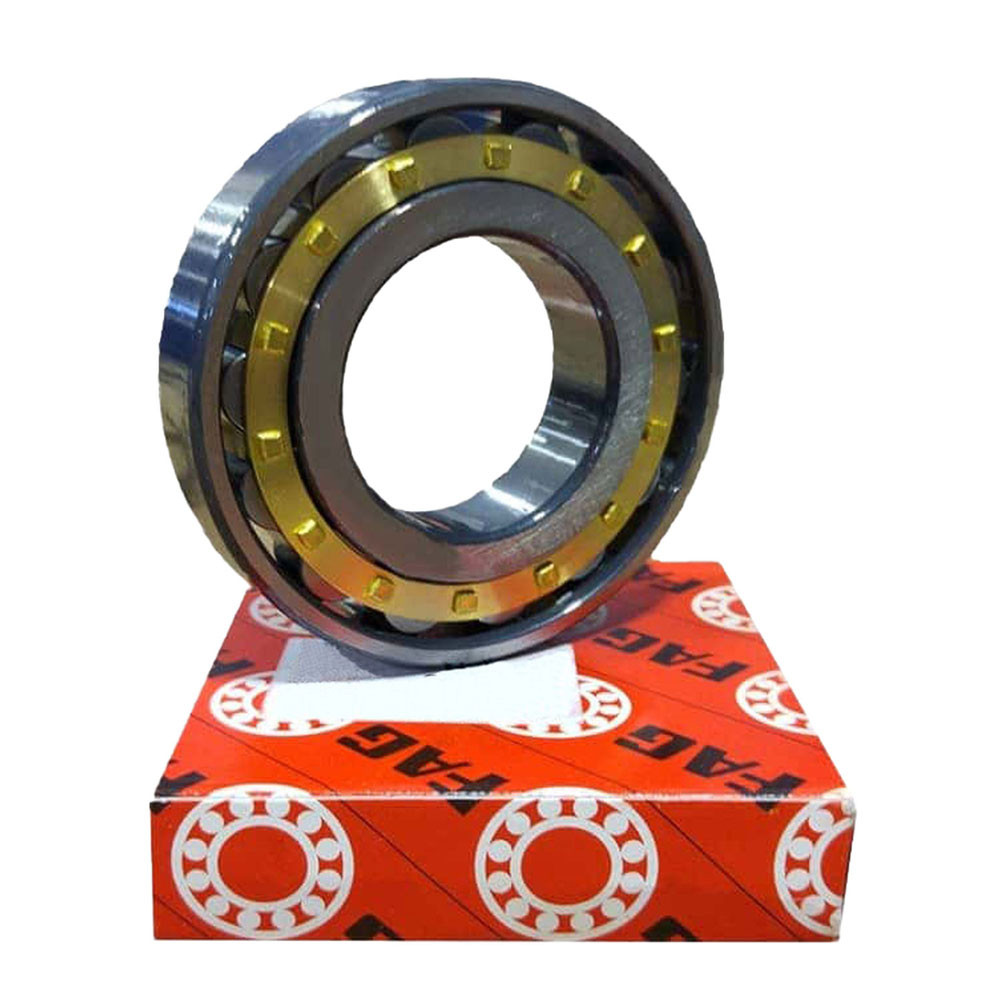

This NU306-E-M1A-C3 bearing is a single row cylindrical roller bearing, it has no flanges on the inner ring, an increased capacity design, a two-piece solid brass cage, rib guided on outer ring and a larger than normal radial internal clearance. The bearing's dimensions are 30x72x19.
| NU | 3 | 06 | E | M1A | C3 |
|---|---|---|---|---|---|
| Two Flanges on Outer Ring and No Flanges on Inner Ring | Medium Series | 30mm - Bore Size | Increased Capacity Design | Solid Brass Cage, Two-piece, Rib-guided on Outer Ring | Radial Internal Clearance Larger Than Normal |
Product Information
Technical Data
Inside Diameter (mm) :
30mm
Outside Diameter (mm) :
72mm
Width (mm) :
19mm
Clearance :
C3
Seals Or Shields :
Open Type
Cage Type :
Brass
Dynamic Load Rating (kN) :
61
Fatigue Load Rating (kN) :
6.4
Limiting Speed Rating (r/min) :
10000
Reference Speed Rating (r/min) :
9000
Static Load Rating (kN) :
48
DescriptionThis NU306-E-M1A-C3 bearing is a single row cylindrical roller bearing, it has no flanges on the inner ring, an increased capacity design, a two-piece solid brass cage, rib guided on outer ring and a larger than normal radial internal clearance. The bearing's dimensions are 30x72x19.
Product InformationBRAND: SKU:nu306-e-m1a-c3-fag AVAILABILITY:In Stock ✅ WEIGHT:0.368 kg Technical DataInside Diameter (mm) :30mm Outside Diameter (mm) :72mm Width (mm) :19mm Clearance :C3 Seals Or Shields :Open Type Cage Type :Brass Dynamic Load Rating (kN) :61 Fatigue Load Rating (kN) :6.4 Limiting Speed Rating (r/min) :10000 Reference Speed Rating (r/min) :9000 Static Load Rating (kN) :48 | ||||||||||||
