Description

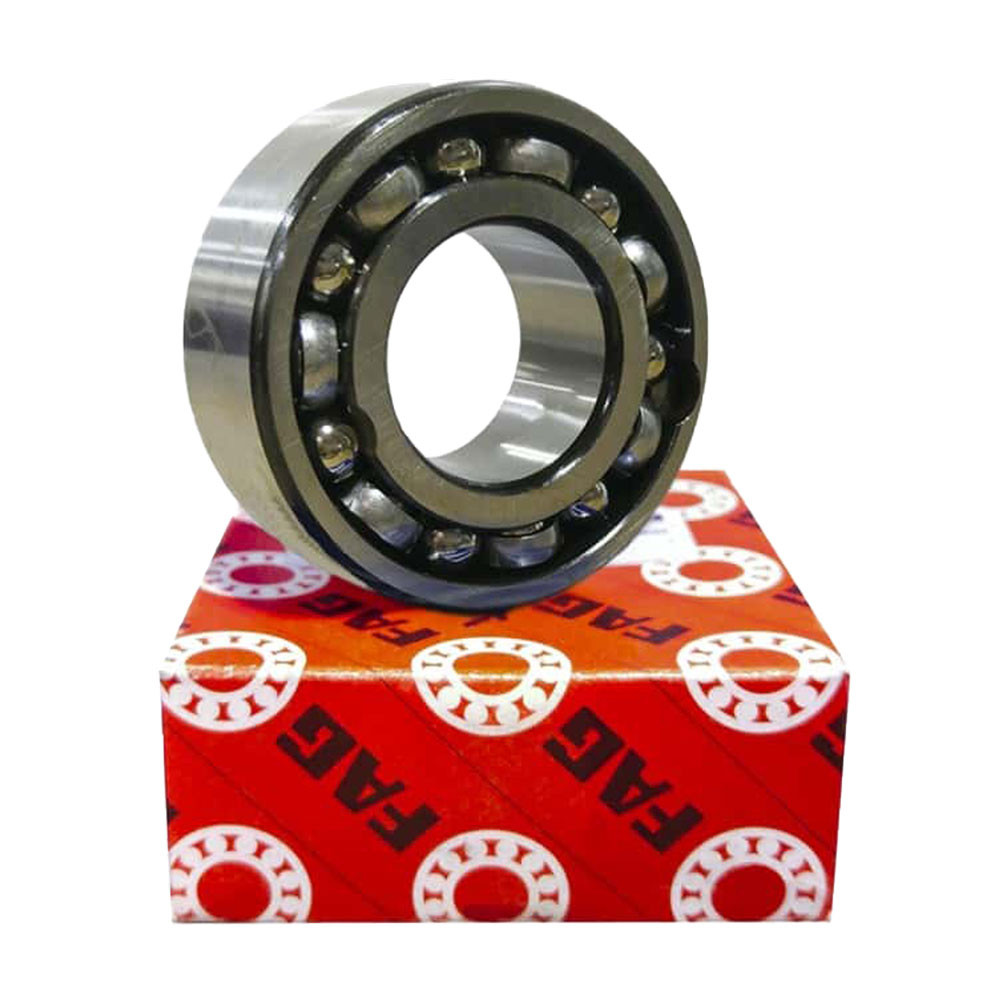

This 3222-M-C3 bearing is a metric double row angular contact bearing with a brass cage and a larger than standard radial internal clearance. The bearing's dimensions are 110x200x69.8mm.
| 32 | 22 | M | C3 | ||
|---|---|---|---|---|---|
| Maximum Capacity, Light Series | 110mm - Bore Size | Open Type | Solid Brass Cage, Ball Guided | Axial Internal Clearance Greater than Normal |
Product Information
Technical Data
Inside Diameter (mm) :
110mm
Outside Diameter (mm) :
200mm
Width (mm) :
69.8mm
Clearance :
C3
Seals Or Shields :
Open Type
Cage Type :
Brass
Dynamic Load Rating (kN) :
204
Fatigue Load Rating (kN) :
11.9
Limiting Speed Rating (r/min) :
3000
Reference Speed Rating (r/min) :
3800
Static Load Rating (kN) :
280
DescriptionThis 3222-M-C3 bearing is a metric double row angular contact bearing with a brass cage and a larger than standard radial internal clearance. The bearing's dimensions are 110x200x69.8mm.
Product InformationBRAND: SKU:3222-m-c3-fag AVAILABILITY:In Stock ✅ WEIGHT:9.23 kg Technical DataInside Diameter (mm) :110mm Outside Diameter (mm) :200mm Width (mm) :69.8mm Clearance :C3 Seals Or Shields :Open Type Cage Type :Brass Dynamic Load Rating (kN) :204 Fatigue Load Rating (kN) :11.9 Limiting Speed Rating (r/min) :3000 Reference Speed Rating (r/min) :3800 Static Load Rating (kN) :280 | ||||||||||||
