Description

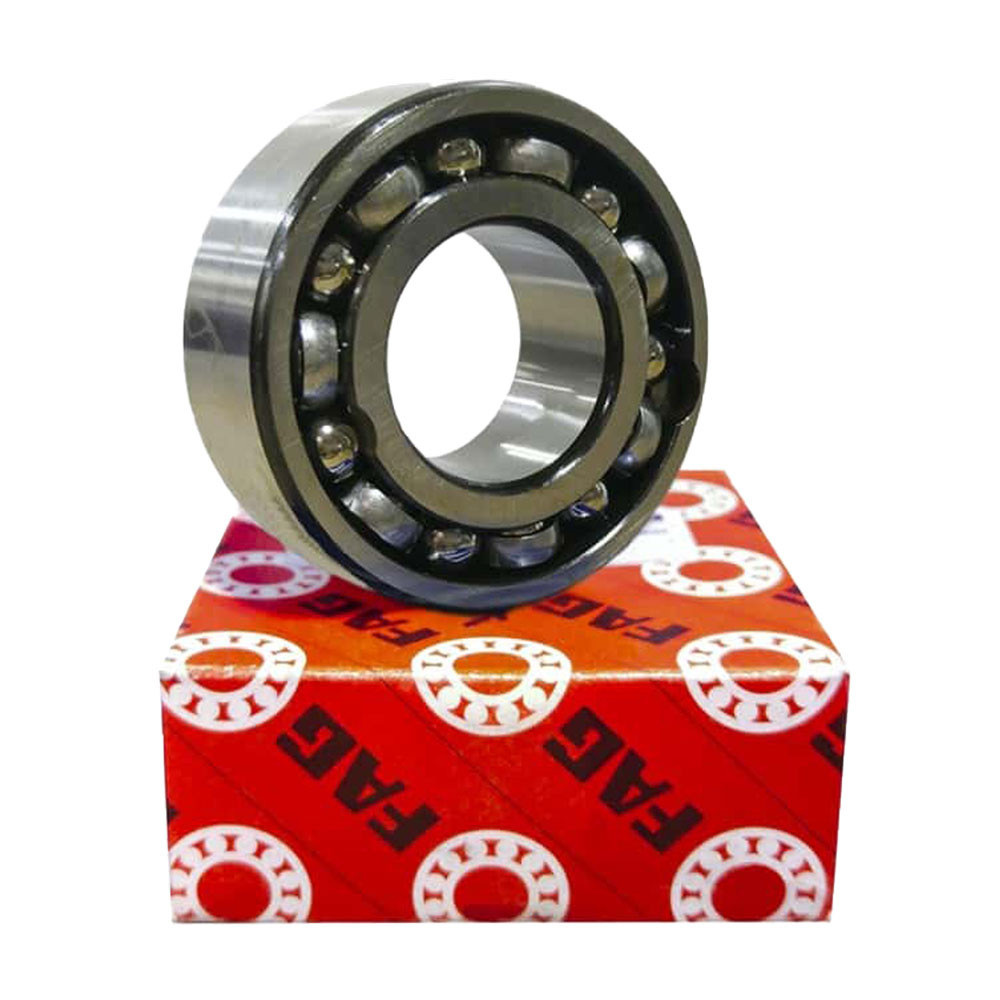

This 3220-C3 bearing is a metric double row angular contact bearing with a steel cage, and a larger than normal radial internal clearance. The bearing's dimensions are 100x180x60.3mm.
| 32 | 20 | C3 | |||
|---|---|---|---|---|---|
| Maximum Capacity, Light Series | 100mm - Bore Size | Open Type | Axial Internal Clearance Greater than Normal |
Product Information
Technical Data
Inside Diameter (mm) :
100mm
Outside Diameter (mm) :
180mm
Width (mm) :
60.3mm
Clearance :
C3
Seals Or Shields :
Open Type
Cage Type :
Steel
Dynamic Load Rating (kN) :
160
Fatigue Load Rating (kN) :
10
Limiting Speed Rating (r/min) :
3200
Reference Speed Rating (r/min) :
4200
Static Load Rating (kN) :
224
DescriptionThis 3220-C3 bearing is a metric double row angular contact bearing with a steel cage, and a larger than normal radial internal clearance. The bearing's dimensions are 100x180x60.3mm.
Product InformationBRAND: SKU:3220-c3-fag AVAILABILITY:In Stock ✅ WEIGHT:6.19 kg Technical DataInside Diameter (mm) :100mm Outside Diameter (mm) :180mm Width (mm) :60.3mm Clearance :C3 Seals Or Shields :Open Type Cage Type :Steel Dynamic Load Rating (kN) :160 Fatigue Load Rating (kN) :10 Limiting Speed Rating (r/min) :3200 Reference Speed Rating (r/min) :4200 Static Load Rating (kN) :224 | ||||||||||||
