Description

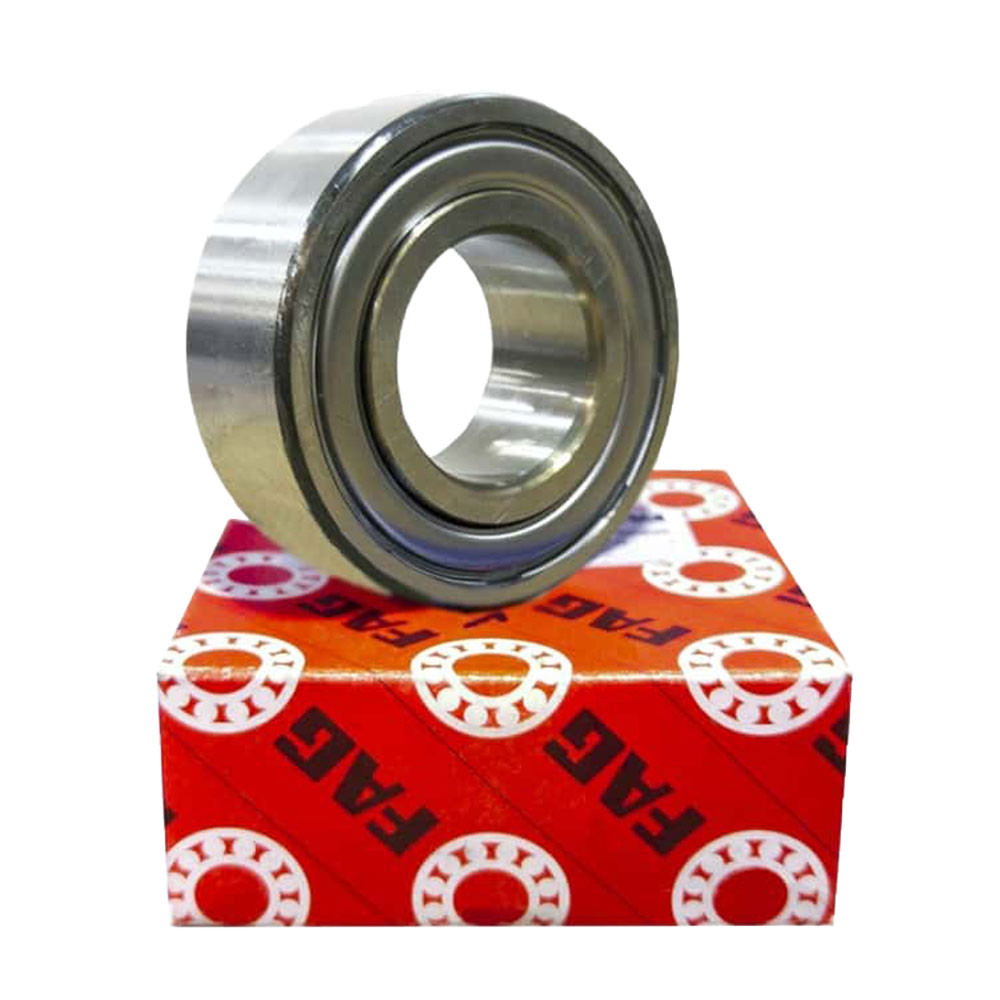

This 3209-B-2Z-TVH bearing is a metric double row angular contact bearing with a modified internal construction, a metal shield on both sides of the bearing, a glass fibre reinforced PA66 cage and a normal radial internal clearance. The bearing's dimensions are 45x85x30.2mm.
| 32 | 09 | B | 2Z | TVH | |
|---|---|---|---|---|---|
| Maximum Capacity, Light Series | 45mm - Bore Size | Modified Internal Construction | Gap Seals on Both Sides | Solid Polyamide Snap Cage, Ball Guided | Normal Internal Clearance |
Product Information
Technical Data
Inside Diameter (mm) :
45mm
Outside Diameter (mm) :
85mm
Width (mm) :
30.2mm
Clearance :
Standard
Seals Or Shields :
Two Metal Shields
Cage Type :
Plastic
Dynamic Load Rating (kN) :
48
Fatigue Load Rating (kN) :
1.8
Limiting Speed Rating (r/min) :
5000
Reference Speed Rating (r/min) :
7800
Static Load Rating (kN) :
37.5
DescriptionThis 3209-B-2Z-TVH bearing is a metric double row angular contact bearing with a modified internal construction, a metal shield on both sides of the bearing, a glass fibre reinforced PA66 cage and a normal radial internal clearance. The bearing's dimensions are 45x85x30.2mm.
Product InformationBRAND: SKU:3209-b-2z-tvh-fag AVAILABILITY:In Stock ✅ WEIGHT:0.64 kg Technical DataInside Diameter (mm) :45mm Outside Diameter (mm) :85mm Width (mm) :30.2mm Clearance :Standard Seals Or Shields :Two Metal Shields Cage Type :Plastic Dynamic Load Rating (kN) :48 Fatigue Load Rating (kN) :1.8 Limiting Speed Rating (r/min) :5000 Reference Speed Rating (r/min) :7800 Static Load Rating (kN) :37.5 | ||||||||||||
