Description

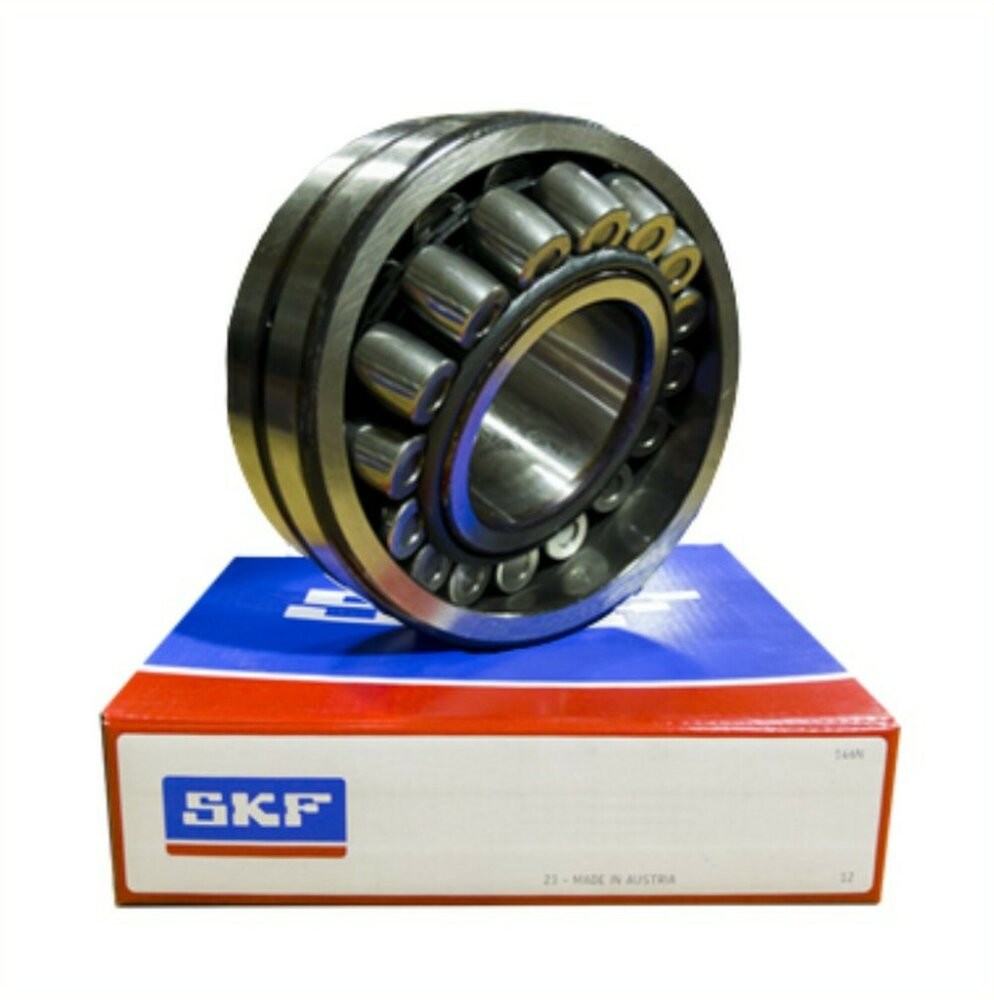

This 23238 CCK/C3W33 bearing is a Spherical Roller Bearing with a guide ring centred on a flangeless inner ring, two stamped steel cages, a 1:12 tapered bore, an annular groove in the outer ring with three lubrication holes and a greater than normal radial internal clearance. The bearing's dimensions are 190x340x120.
| 232 | 38 | CC | K | C3 | W33 | ||
|---|---|---|---|---|---|---|---|
| Heavy, Wide | 190mm - Bore Size | Flangeless Inner Ring with Stamped Steel Cages | Tapered Bore (1:12) | Stamped Steel Cage | Radial Clearance Greater Than Standard | Annular Groove and Three Lubrication Holes in the Outer Ring |
Product Information
Technical Data
Inside Diameter (mm) :
190mm
Outside Diameter (mm) :
340mm
Width (mm) :
120mm
Clearance :
C3
Seals Or Shields :
Open Type
Cage Type :
Steel
Fatigue Load Rating (kN) :
208
Limiting Speed Rating (r/min) :
1800
Reference Speed Rating (r/min) :
1300
Static Load Rating (kN) :
2400
Dynamic Load Rating (kN) :
1660
DescriptionThis 23238 CCK/C3W33 bearing is a Spherical Roller Bearing with a guide ring centred on a flangeless inner ring, two stamped steel cages, a 1:12 tapered bore, an annular groove in the outer ring with three lubrication holes and a greater than normal radial internal clearance. The bearing's dimensions are 190x340x120.
Product InformationBRAND: SKU:23238cck/c3w33-skf AVAILABILITY:In Stock ✅ WEIGHT:48 kg Technical DataInside Diameter (mm) :190mm Outside Diameter (mm) :340mm Width (mm) :120mm Clearance :C3 Seals Or Shields :Open Type Cage Type :Steel Fatigue Load Rating (kN) :208 Limiting Speed Rating (r/min) :1800 Reference Speed Rating (r/min) :1300 Static Load Rating (kN) :2400 Dynamic Load Rating (kN) :1660 | |||||||||||||||
Bulk Pricing
| |||||||||||||||
