Description

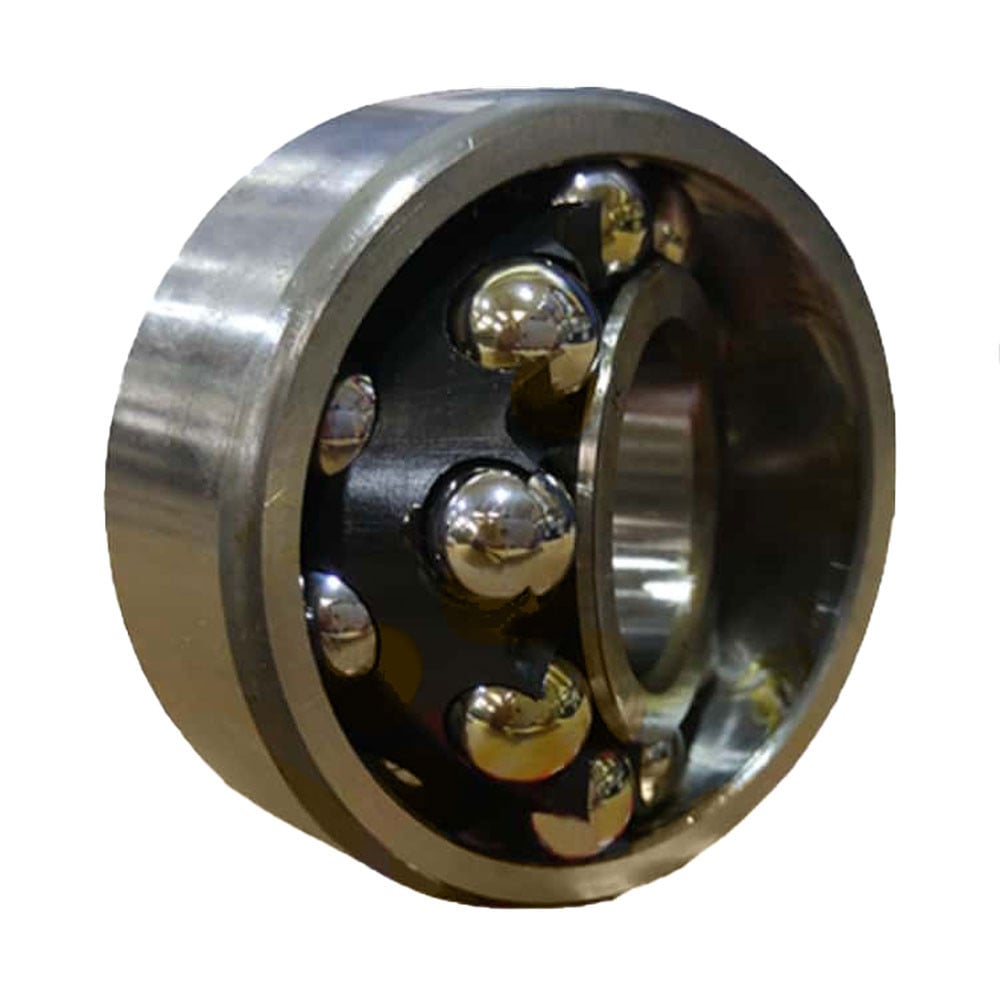

This 2314M/C3 bearing is a double row, extra wide series, metric self aligning bearing with a machined brass cage and a larger than normal radial internal clearance. The bearing's dimensions are 70x150x51.
| 23 | 14 | m | c3 | ||
|---|---|---|---|---|---|
| Extra Wide | Bore Size - 70mm | Machined Brass Cage, Ball Centred | Radial Internal Clearance Greater than Normal |
Product Information
Technical Data
Inside Diameter (mm) :
70mm
Outside Diameter (mm) :
150mm
Width (mm) :
51mm
Clearance :
C3
Seals Or Shields :
Open Type
Cage Type :
Brass
Dynamic Load Rating (kN) :
111
Fatigue Load Rating (kN) :
1.86
Limiting Speed Rating (r/min) :
6000
Reference Speed Rating (r/min) :
8000
Static Load Rating (kN) :
37.5
DescriptionThis 2314M/C3 bearing is a double row, extra wide series, metric self aligning bearing with a machined brass cage and a larger than normal radial internal clearance. The bearing's dimensions are 70x150x51.
Product InformationBRAND: SKU:2314m/c3-skf AVAILABILITY:In Stock ✅ WEIGHT:3.9 kg Technical DataInside Diameter (mm) :70mm Outside Diameter (mm) :150mm Width (mm) :51mm Clearance :C3 Seals Or Shields :Open Type Cage Type :Brass Dynamic Load Rating (kN) :111 Fatigue Load Rating (kN) :1.86 Limiting Speed Rating (r/min) :6000 Reference Speed Rating (r/min) :8000 Static Load Rating (kN) :37.5 | ||||||||||||
