Description

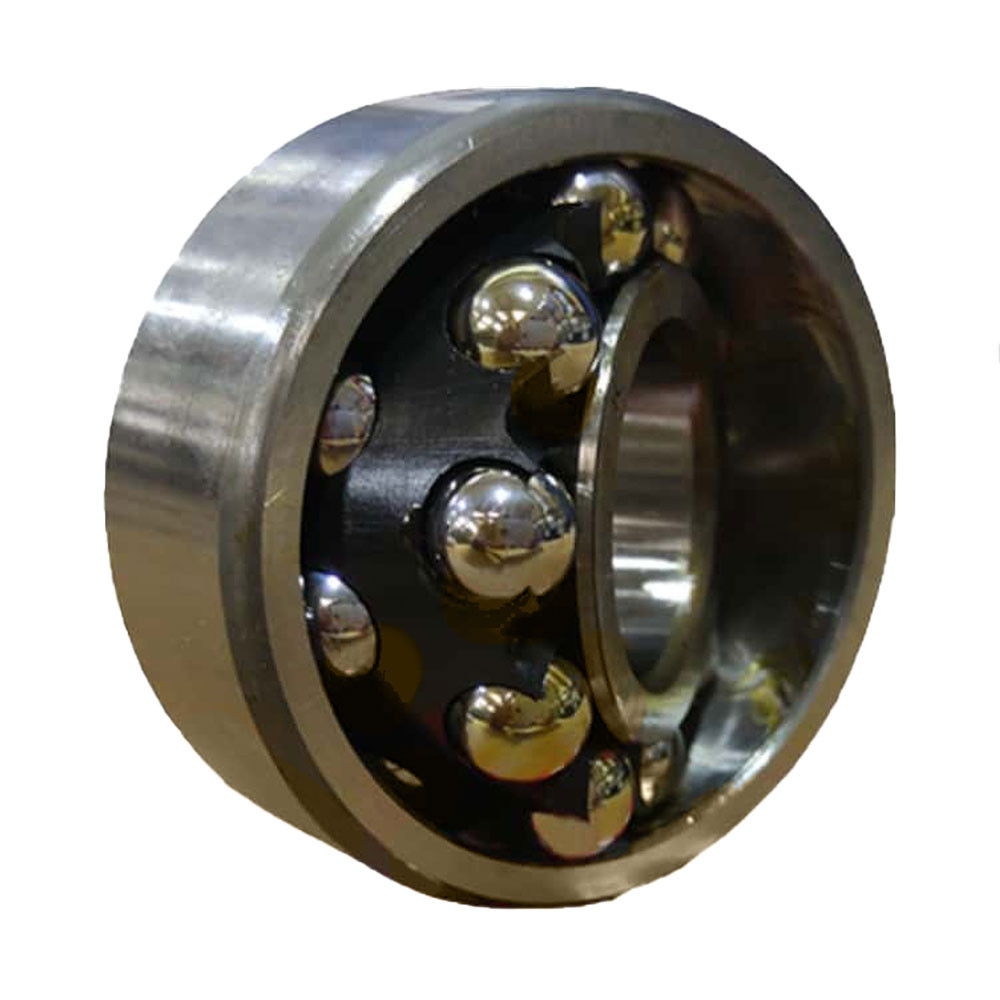

This 1310EKTN9/C3 bearing is a double row, narrow series, metric self aligning bearing with an optimized internal design for increased load carrying capacity, a 1:12 tapered bore, a glass fibre reinforced PA66 cage and a larger than normal radial internal clearance. The bearing's dimensions are 50x110x27.
| 13 | 10 | e | k | tn9 | c3 |
|---|---|---|---|---|---|
| Narrow | Bore Size - 50mm | Extra Capacity | Tapered Bore (1:12 on Diameter) | Glass Fibre Reinforced PA66 Cage, Ball Centred | Radial Internal Clearance Greater than Normal |
Product Information
Technical Data
Inside Diameter (mm) :
50mm
Outside Diameter (mm) :
110mm
Width (mm) :
27mm
Clearance :
C3
Seals Or Shields :
Open Type
Cage Type :
Plastic
Dynamic Load Rating (kN) :
43.6
Fatigue Load Rating (kN) :
0.72
Limiting Speed Rating (r/min) :
8000
Reference Speed Rating (r/min) :
12000
Static Load Rating (kN) :
14
DescriptionThis 1310EKTN9/C3 bearing is a double row, narrow series, metric self aligning bearing with an optimized internal design for increased load carrying capacity, a 1:12 tapered bore, a glass fibre reinforced PA66 cage and a larger than normal radial internal clearance. The bearing's dimensions are 50x110x27.
Product InformationBRAND: SKU:1310ektn9/c3-skf AVAILABILITY:In Stock ✅ WEIGHT:1.2 kg Technical DataInside Diameter (mm) :50mm Outside Diameter (mm) :110mm Width (mm) :27mm Clearance :C3 Seals Or Shields :Open Type Cage Type :Plastic Dynamic Load Rating (kN) :43.6 Fatigue Load Rating (kN) :0.72 Limiting Speed Rating (r/min) :8000 Reference Speed Rating (r/min) :12000 Static Load Rating (kN) :14 | ||||||||||||
